Product ID: MI-STROB2

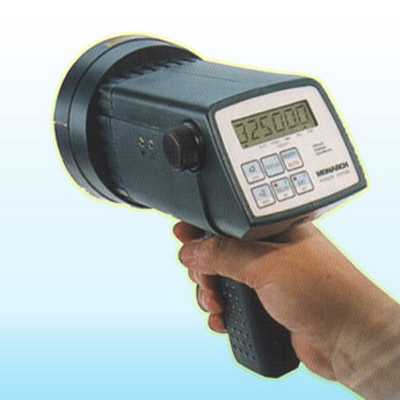

Phaser-Strobe PB 115
Phaser-Strobe incorporate the unique design features of the Nova-Strobe DB Plus family with an increased operating range of 30 to 32,500 flashes per minute, as well as external phase shifting. The unique digital adjustment knob can select the decade for adjustments, so coarse and fine adjustments of flash rates are made quickly and with significantly better resolution than competitive units. The memory feature of the Phaser-Strobe allows three flash rates to be stored-displayed in flashes per minute or flashes per second. Phaser-Strobe operates with internal rechargeable batteries or continuously from AC line power with the optional power supply/recharger.
Features N.I.S.T. Traceable Certificate of Calibration included
- Phase Shift adjustable as phase angle or time with resolution to 0.1¢X and 0. 0001sec
- Phase Shift adjustable as phase angle or time with resolution to 0.1¢X and 0. 0001sec
- Auto step mode provides motion viewing for high speed events
- Backlit alphanumeric LCD shows flash rate, degrees, time
- Store and recall three memory settings
- TTL compatible input/output jacks, power for optional sensors
- Tachometer mode from external trigger
Ordering Information
- Phaser-Strobe PB 115 / Stroboscope, R-5(115Vac)recharger
- Phaser-Strobe PB Kit 115 / Same as Above with PSC-3(115 Vac)power supply/recharger and spare lamp in latching case
- Phaser-Strobe PB 230 / Same as Phaser-Strobe PB 115, but with R-6(230 Vac)recharger
- Phaser-Strobe PB Kit 230 / Same as Phaser-Strobe PB Kit 115, but with PSC-4(230 Vac)power supply/recharger
|
| |
|
